Vert-X 31E5

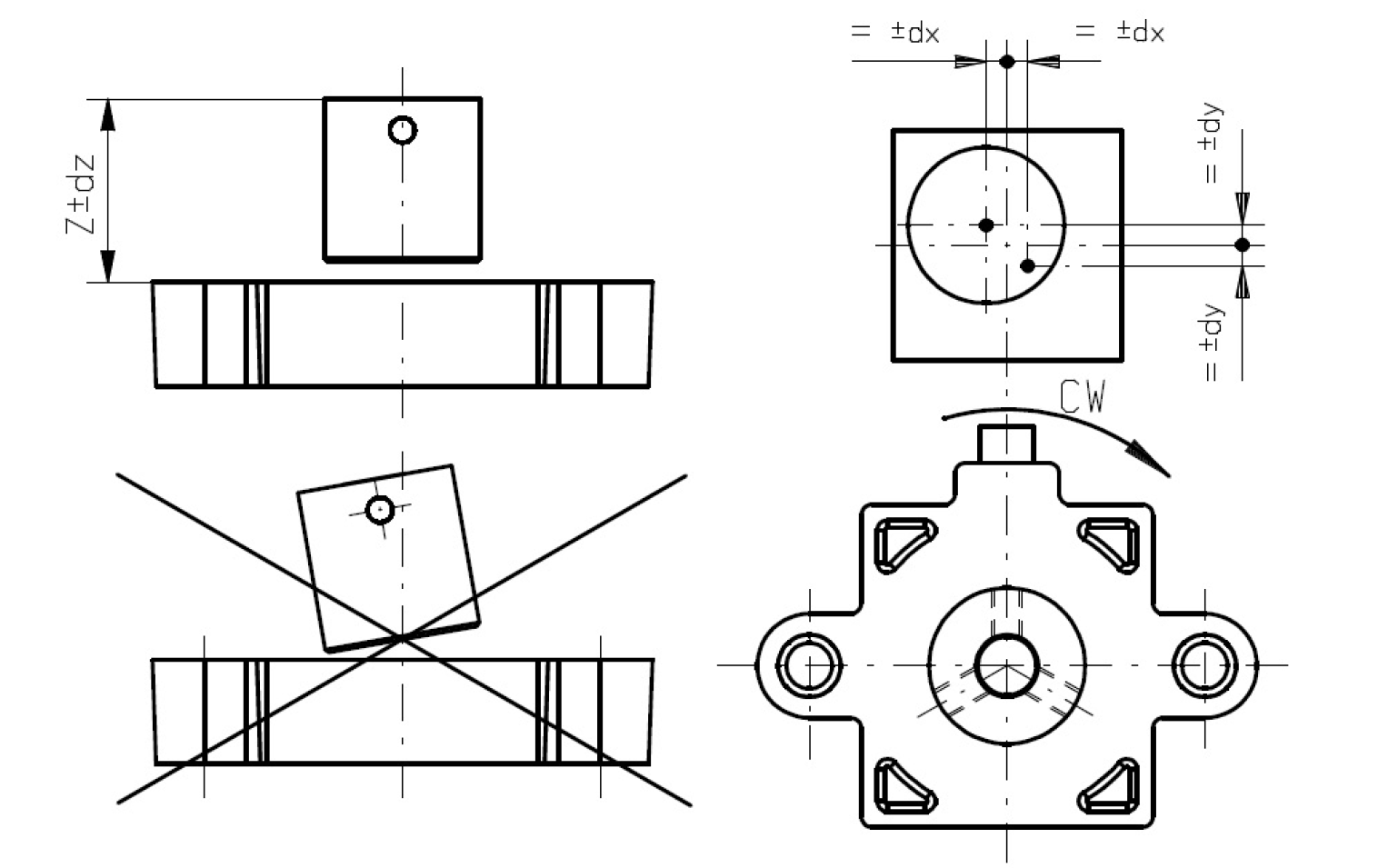

Mounting information

Working position (Z)

MH-X2 16.10mm

Max. permitted misalignment of the magnetic actuator

dx ±0.50mm

dy ±0.50mm

dz ±0.30mm

Vert-X 31E6

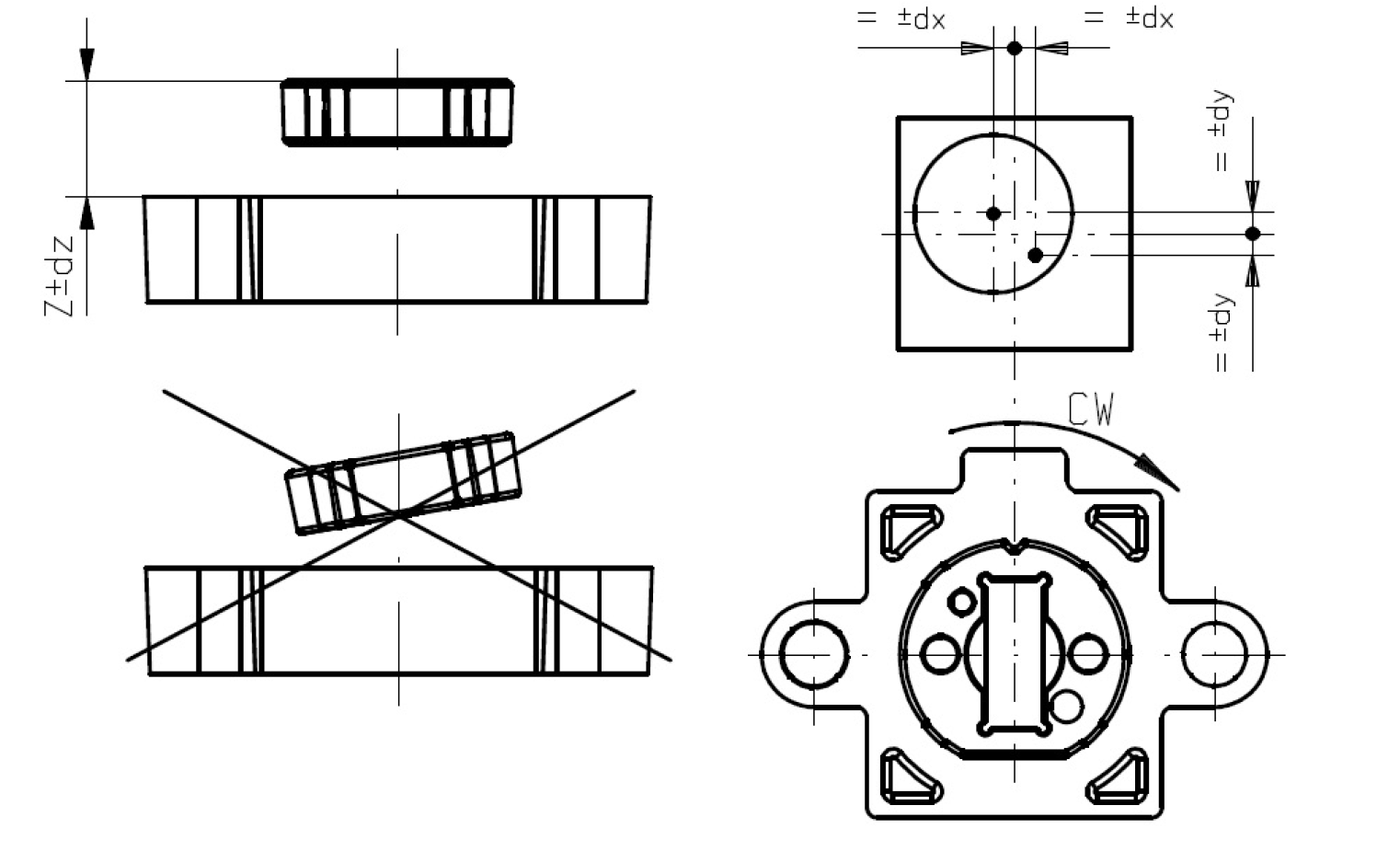

Mounting information

Working position (Z)

MH-X2 8.70mm

Max. permitted misalignment of the magnetic actuator

dx ±0.50mm

dy ±0.50mm

dz ±0.50mm
